Precision with OSNAP

Snap to exact geometry every time.

Explore all lessons for free Create an account to save progress, earn XP, and track completed lessons.

Learning objective

By the end of this lesson you can enable Object Snap, choose the right snap modes, and consistently land your cursor on exact geometry.

What OSNAP is

OSNAP (Object Snap) makes the cursor jump to meaningful points on existing geometry — endpoints, midpoints, centres, intersections — instead of an eyeballed pixel.

Why and when you use it

Every drawing needs geometry that truly connects. Without OSNAP, endpoints land a fraction off and TRIM, JOIN, HATCH and EXTRUDE all break later.

Where to find it in the AutoCAD interface

Ribbon: Status bar → Object Snap icon (looks like a small square with a dot).
Menu: Right-click the Object Snap icon → Object Snap Settings.
Command line: Type OSNAP and press Enter to open the settings dialog.
Alias / shortcut: F3 toggles OSNAP on/off.

Key vocabulary

Endpoint: Either tip of a line, arc or polyline segment.
Midpoint: The exact middle of a segment.
Center: The middle of a circle, arc or ellipse.
Intersection: The point where two objects cross.
Marker: The coloured glyph that appears under the cursor when a snap is found.

Before you start

Have a few intersecting lines and circles already drawn.
Press F3 once and watch the status bar icon — it should highlight blue when OSNAP is on.
Press F12 so dynamic input shows the snap tooltip next to the crosshair.

Step-by-step instructions

1

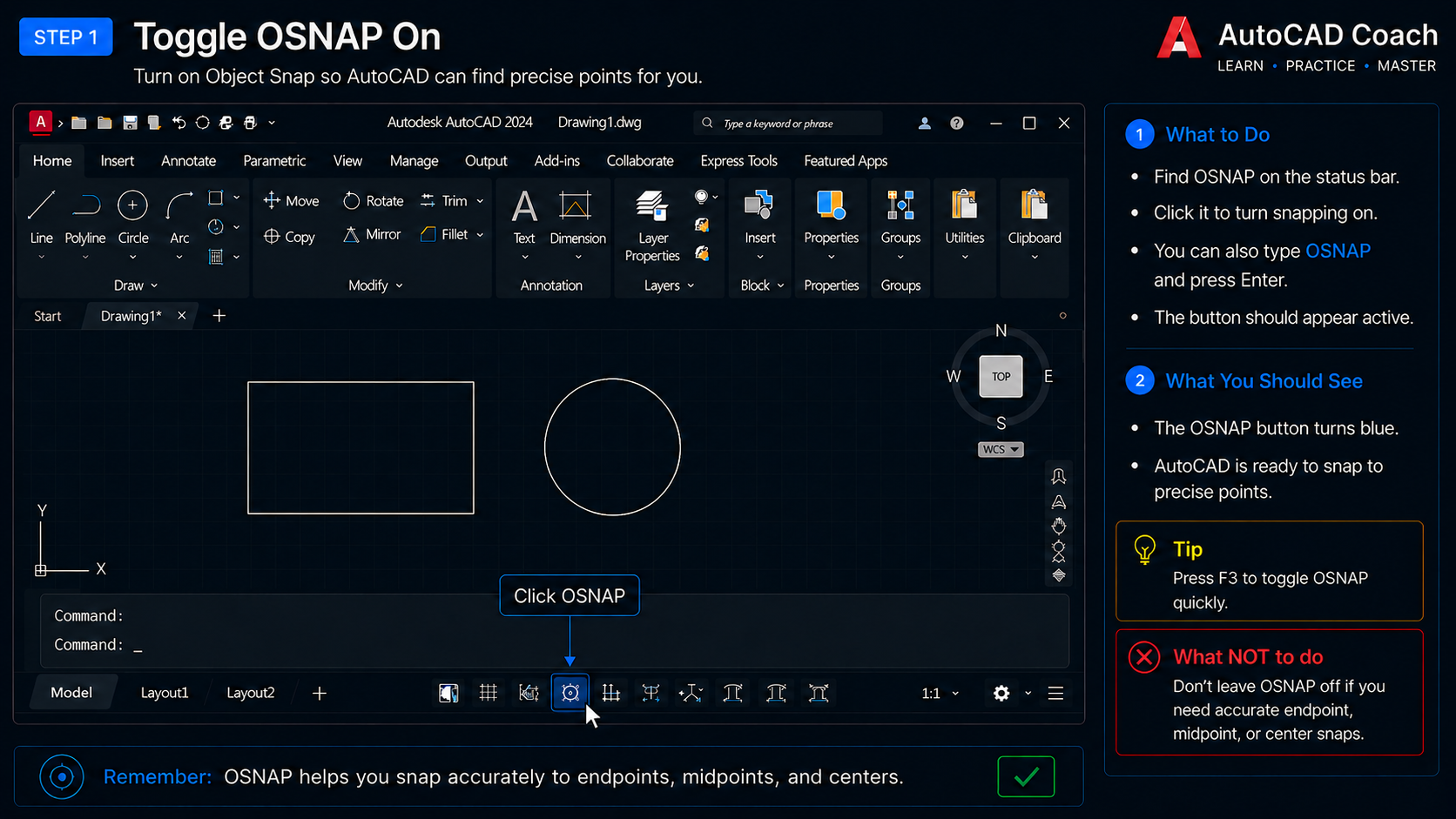

Toggle OSNAP on
2
Open snap settings
3
Enable the essentials
4
Hover and watch the marker
5
Click to commit the snap

Common mistakes & fixes

Drawing without F3 on and wondering why JOIN fails.
Fix: Always check the status-bar Object Snap icon before you start.
Enabling every snap mode at once.
Fix: Too many modes fight each other. Keep four: Endpoint, Midpoint, Center, Intersection.
Clicking before the marker appears.
Fix: Wait for the coloured marker. If it's missing, you didn't snap.

Troubleshooting

No markers show up.Show

Cause: OSNAP is off, or no snap modes are checked.

Fix: Press F3, then right-click the icon and tick at least Endpoint and Midpoint.

Marker shows for the wrong point.Show

Cause: Multiple snap modes overlap on dense geometry.

Fix: Tap Tab to cycle through nearby snap candidates.

Practice exercise

Snapped triangle on three circles

Draw three circles at random positions.
Press F3 to confirm OSNAP is on.
Run LINE and snap the start point to the first circle's centre.
Snap the next two points to the other two centres.
Type C, Enter to close the triangle.

Success looks like: A triangle whose three vertices land exactly on the three circle centres — no offsets, no gaps.

Pro tips & related commands

Pro tips

Hold Shift + right-click during any command to pop up a one-shot snap menu.
Press Tab while hovering near overlapping geometry to cycle through snap candidates.
Turn Polar tracking (F10) on alongside OSNAP for accurate angled snapping.

Related commands

OSNAP
Open the snap-settings dialog directly.
OTRACK
Object snap tracking — extend snap alignments across the screen.
ORTHO(F8)
Lock the cursor to horizontal or vertical.

Lesson quiz

0/2 correct

Score at least 2/2 to unlock lesson completion.

1. Which function key toggles OSNAP on/off?

2. Drawing without OSNAP usually causes what problem?

Create a free account to complete quizzes and save your progress.
