Learning objective

By the end of this lesson you can open AutoCAD, identify every major area of the workspace, and pan/zoom around an empty drawing with confidence.

What Interface + Navigation is

The AutoCAD interface is the set of panels and bars surrounding your drawing area: the ribbon (top), the command line (bottom), the status bar (very bottom) and the drawing area itself. You don't draw anything yet — you only learn where you are.

Why and when you use it

Every command you'll ever run lives in one of these areas. If you don't know where AutoCAD is listening, you'll click randomly and the program will feel hostile. Learn the map first, then the commands.

Where to find it in the AutoCAD interface

Ribbon
Top of the window — the wide strip with tabs labelled Home, Insert, Annotate, etc.
Menu
Application menu (the large red A in the top-left) for File / New / Open / Save.
Command line
Docked at the bottom of the drawing area. Always shows what AutoCAD is waiting for.
Alias / shortcut
Press F2 to expand the command-line history at any time.

Key vocabulary

Workspace
A preset arrangement of ribbon, panels and tools. Beginners use 'Drafting & Annotation'.
Ribbon
The tabbed toolbar at the top. Each tab groups related commands into panels.
Command line
A small text area at the bottom where you type commands and read prompts.
Status bar
The thin bar of toggle icons at the very bottom (Grid, Snap, OSNAP, Ortho…).
Drawing area
The large dark space in the middle where geometry is drawn.
Crosshairs
The cursor inside the drawing area, made of two long perpendicular lines.
Pan
Sliding the view sideways without changing zoom level.
Zoom
Moving the camera closer to or farther from the drawing.

Before you start

  • Launch AutoCAD and wait for the Start tab to appear.
  • Use a mouse with a working scroll wheel — pan and zoom rely on it.
  • Close any tutorial pop-ups so the workspace is clean.

Step-by-step instructions

  1. 1

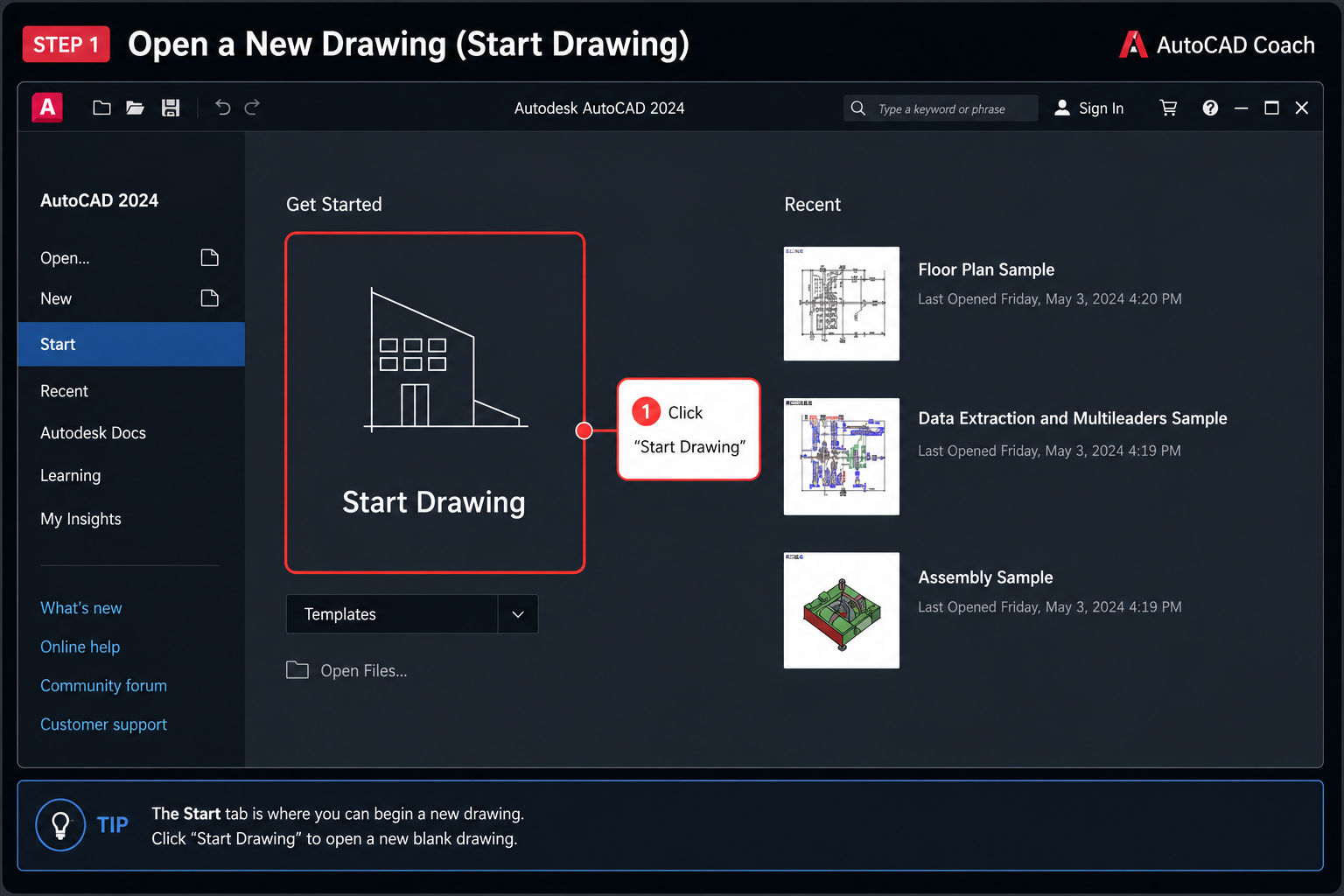

    Open a new drawing from the acad template
  2. 2

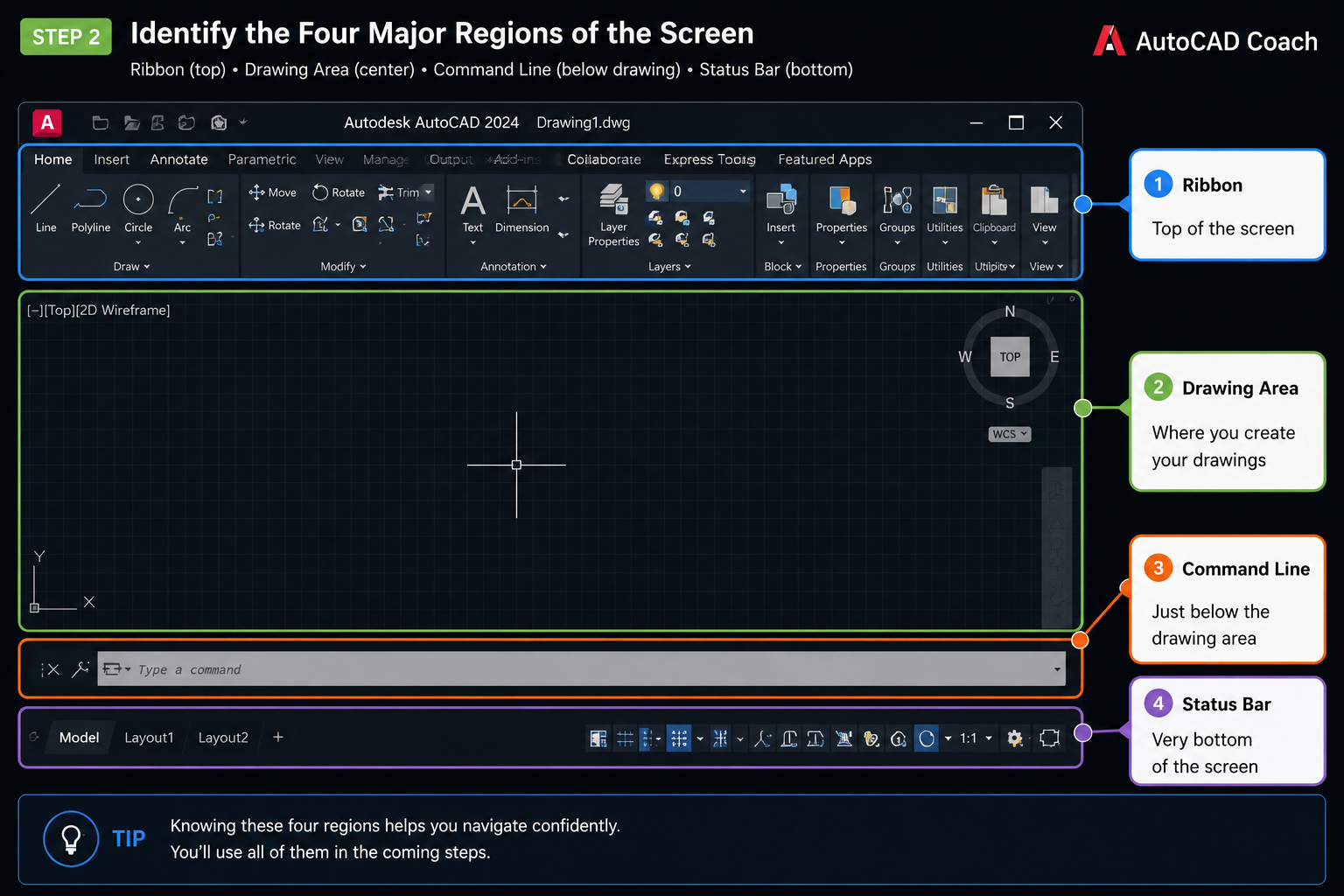

    Identify the four major regions of the screen
  3. 3

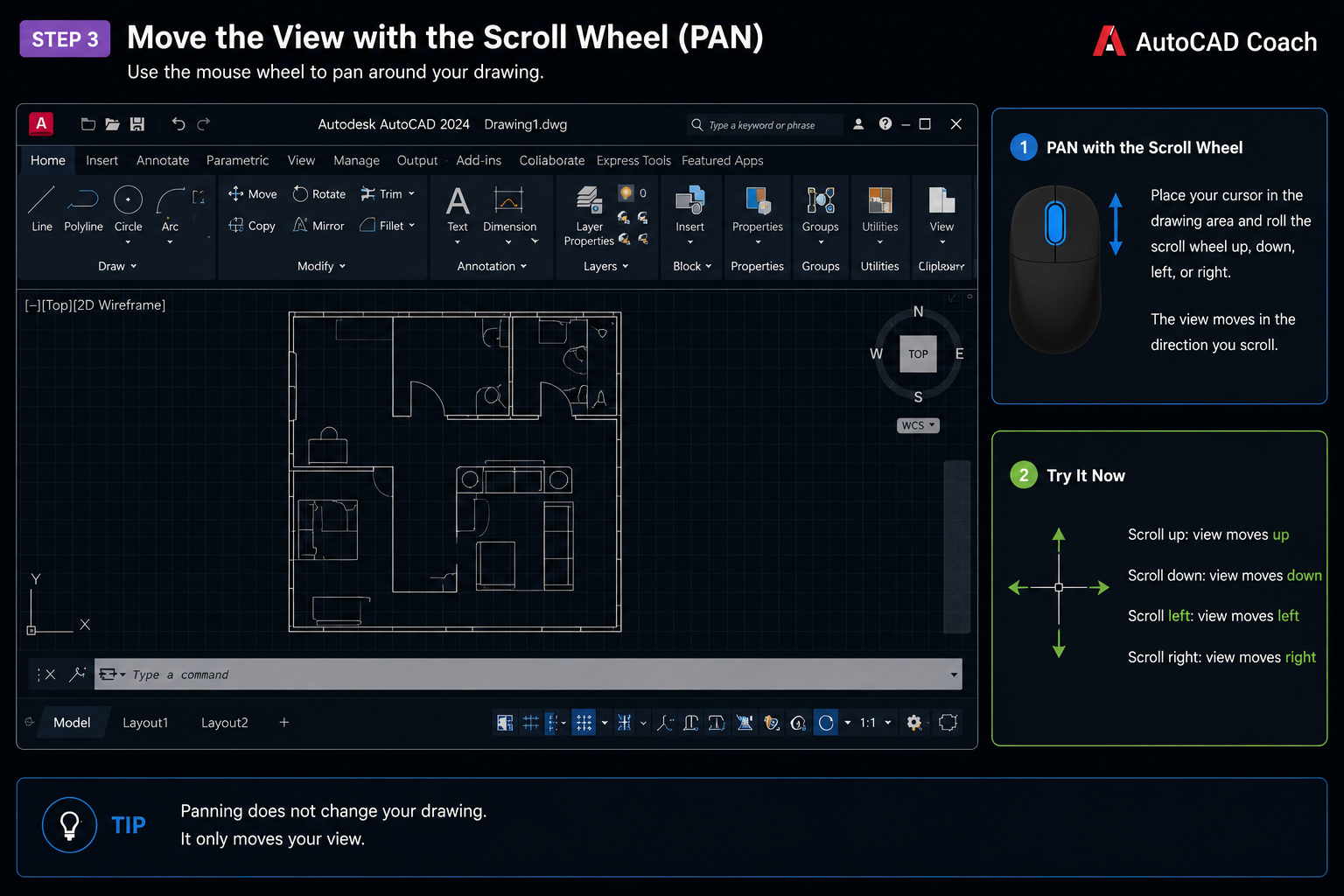

    Move the view with the scroll wheel (PAN)
  4. 4

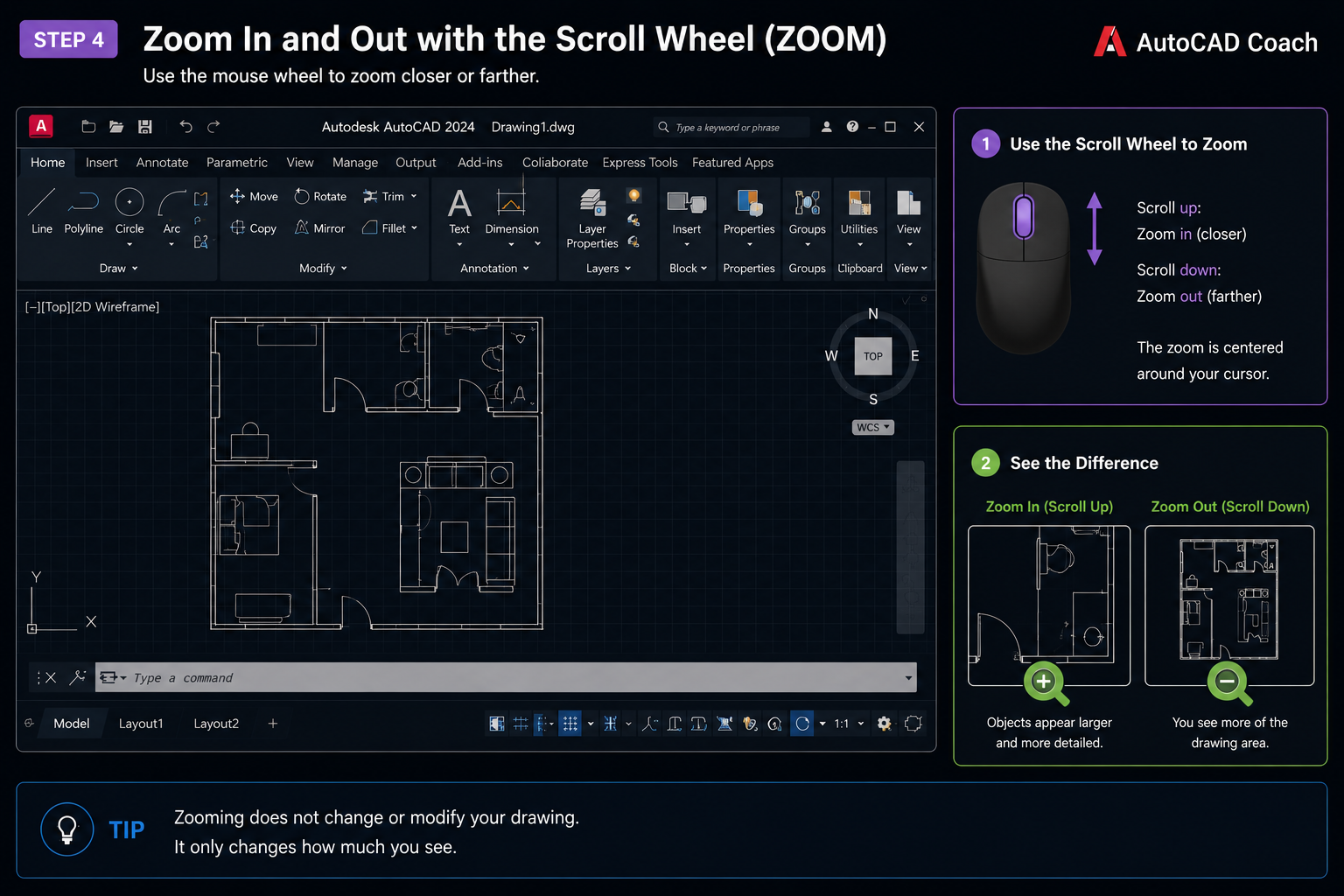

    Zoom in and out with the scroll wheel (ZOOM)
  5. 5

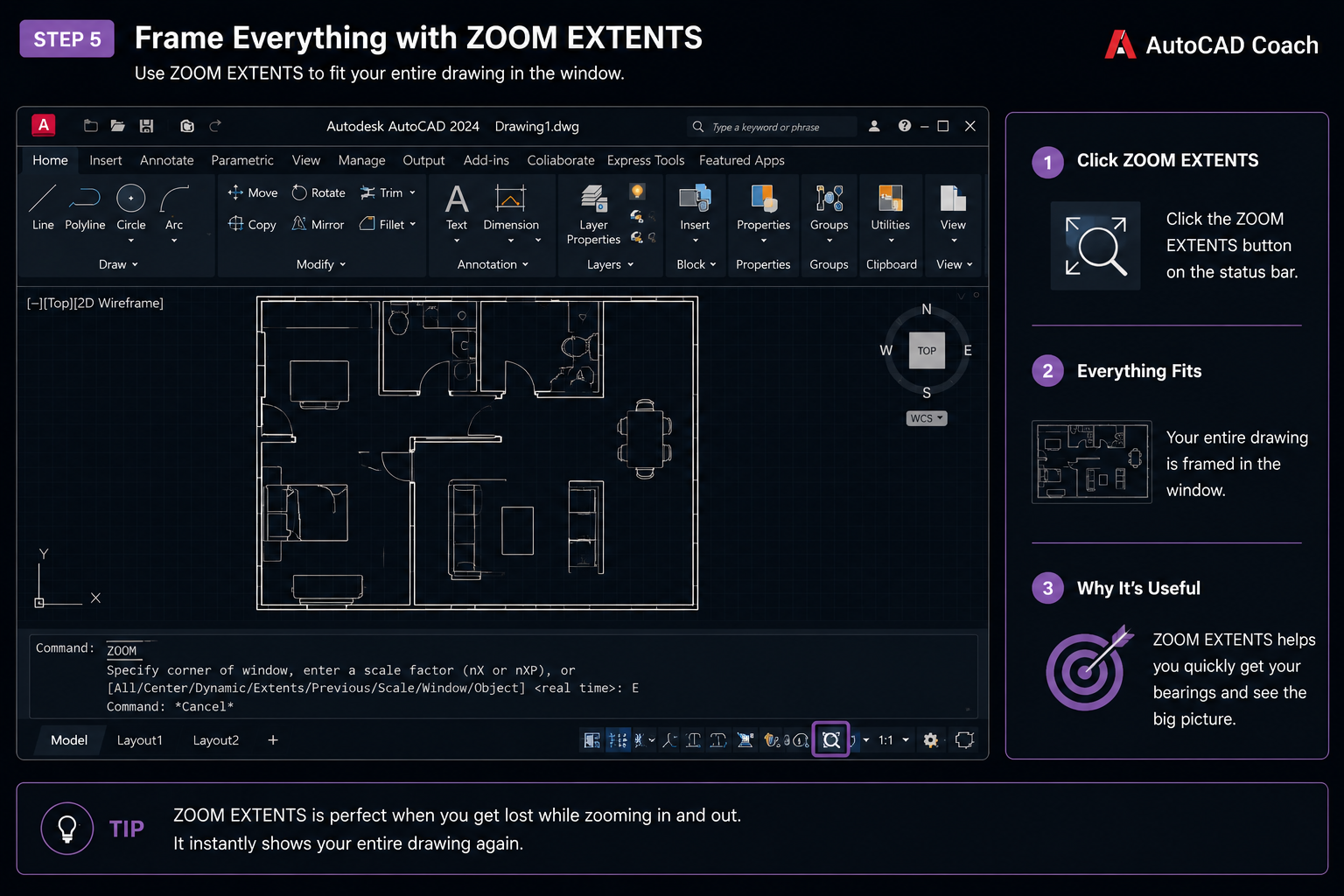

    Frame everything with ZOOM EXTENTS

Common mistakes & fixes

  • Clicking ribbon icons at random hoping something happens.
    Fix: Read the command line first — it tells you what AutoCAD is waiting for.
  • Rolling the wheel and expecting to PAN.
    Fix: Rolling = ZOOM. HOLDING the wheel + drag = PAN.
  • Losing the drawing off-screen.
    Fix: Type Z then E (ZOOM EXTENTS) to re-frame everything.

Troubleshooting

The crosshair won't move smoothly.Show
Cause: The cursor is outside the drawing area.
Fix: Click once inside the dark drawing area, then try again.
Scroll wheel does nothing.Show
Cause: MBUTTONPAN is off, or the wheel driver is misconfigured.
Fix: Type MBUTTONPAN, press Enter, set value to 1, press Enter.
Command line is missing.Show
Cause: It was accidentally closed.
Fix: Press Ctrl + 9 to toggle the command line back on.

Practice exercise

Workspace tour in 60 seconds
  1. Open a new drawing from acad.dwt.
  2. Point at and silently name: ribbon, drawing area, command line, status bar.
  3. Hold the scroll wheel and pan to the top-right corner of the screen.
  4. Roll the wheel back five clicks to zoom out.
  5. Run ZOOM EXTENTS (Z → E) to re-centre.
Success looks like: You can navigate to any part of an empty drawing and return to a centred view in under a minute.

Pro tips & related commands

Pro tips
  • Double-click the scroll wheel to run ZOOM EXTENTS without typing.
  • Press F2 to pop out the command-line history into a resizeable window — handy when prompts scroll too fast.
  • Press Esc twice to cancel any half-finished command and return to a clean prompt.
Related commands
  • ZOOM(Z)
    Change how much of the drawing you see.
  • PAN(P)
    Slide the view without changing zoom.
  • REGEN(RE)
    Regenerate the drawing if curves appear jagged after zooming.
