CIRCLE

Draw a precise circle by centre and radius.

Explore all lessons for free Create an account to save progress, earn XP, and track completed lessons.

Learning objective

By the end of this lesson you can run the CIRCLE command and draw a circle of an exact radius around a chosen centre point.

What CIRCLE is

CIRCLE creates a single circular object. By default it asks for a centre point first, then a radius. Several alternative options exist (2-point, 3-point, tan-tan-radius) but the centre-radius flow is the foundation.

Why and when you use it

Use CIRCLE for holes, wheels, fasteners, decorative arcs, and anywhere your design needs a closed round shape.

Where to find it in the AutoCAD interface

Ribbon: Home tab → Draw panel → Circle dropdown → 'Center, Radius'.
Menu: Draw menu → Circle → Center, Radius.
Command line: Type CIRCLE and press Enter.
Alias / shortcut: C (then Enter).

Key vocabulary

Centre point: The exact middle of the circle, equidistant from every point on the curve.
Radius: The distance from the centre to the edge.
Diameter: The distance across the circle through the centre. Diameter = 2 × radius.
Quadrant: One of the four cardinal points on a circle (0°, 90°, 180°, 270°). OSNAP can snap to these.

Before you start

Open a new drawing from acad.dwt.
Confirm OSNAP is on (F3) so you can snap the centre to an existing point if needed.
Decide whether you want to specify a radius or a diameter — the lesson uses radius.

Step-by-step instructions

1

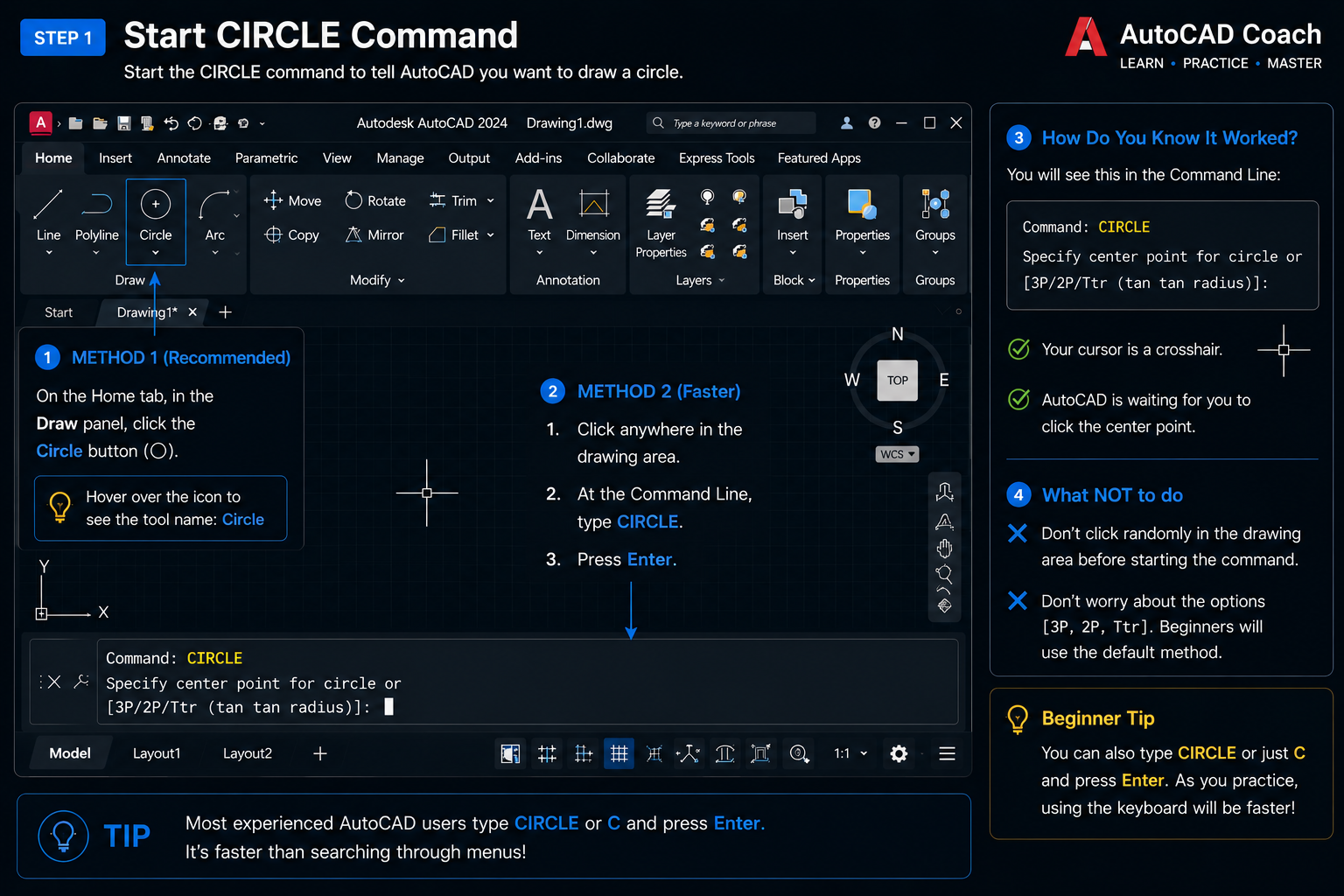

Start the CIRCLE command
2

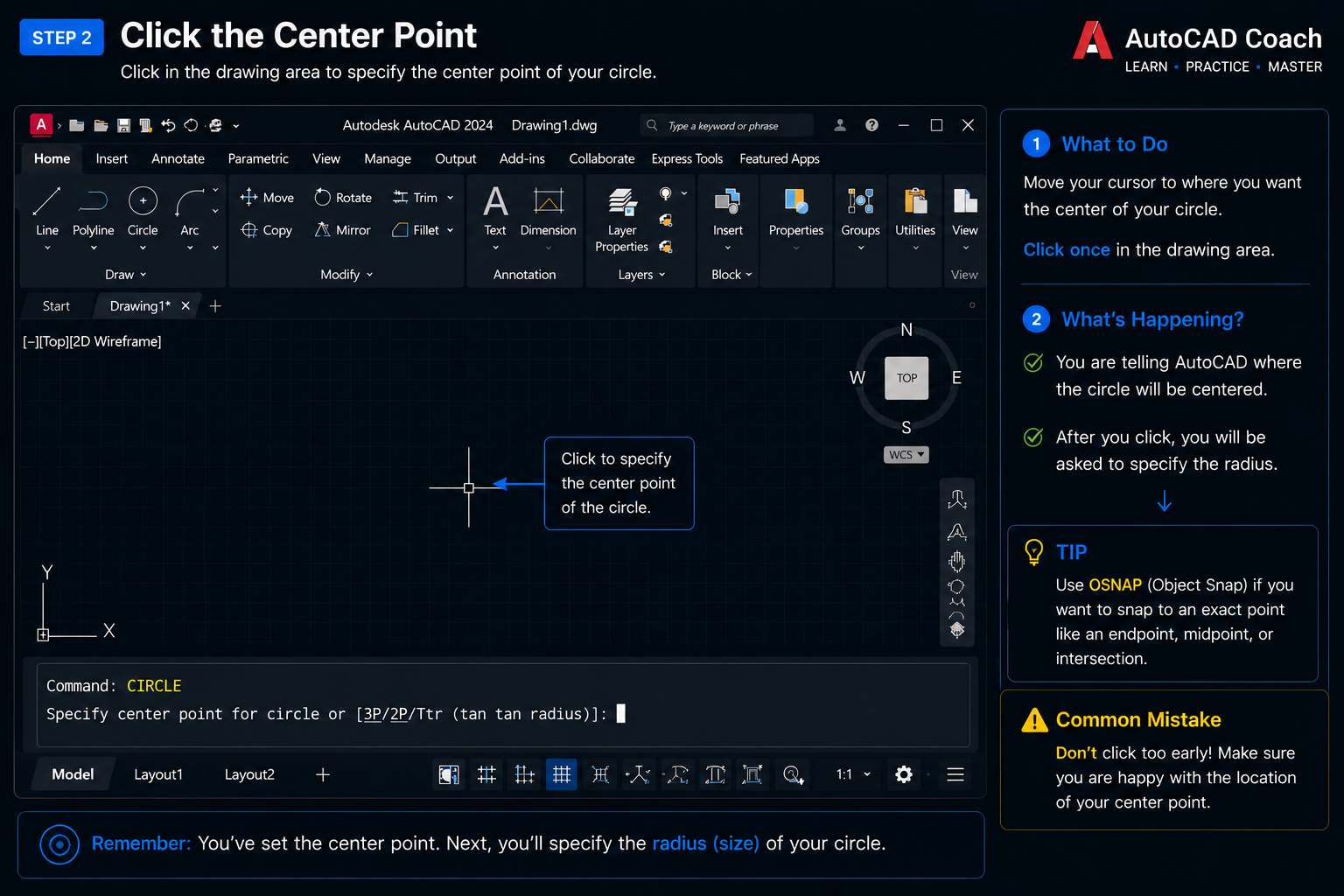

Click the centre point
3

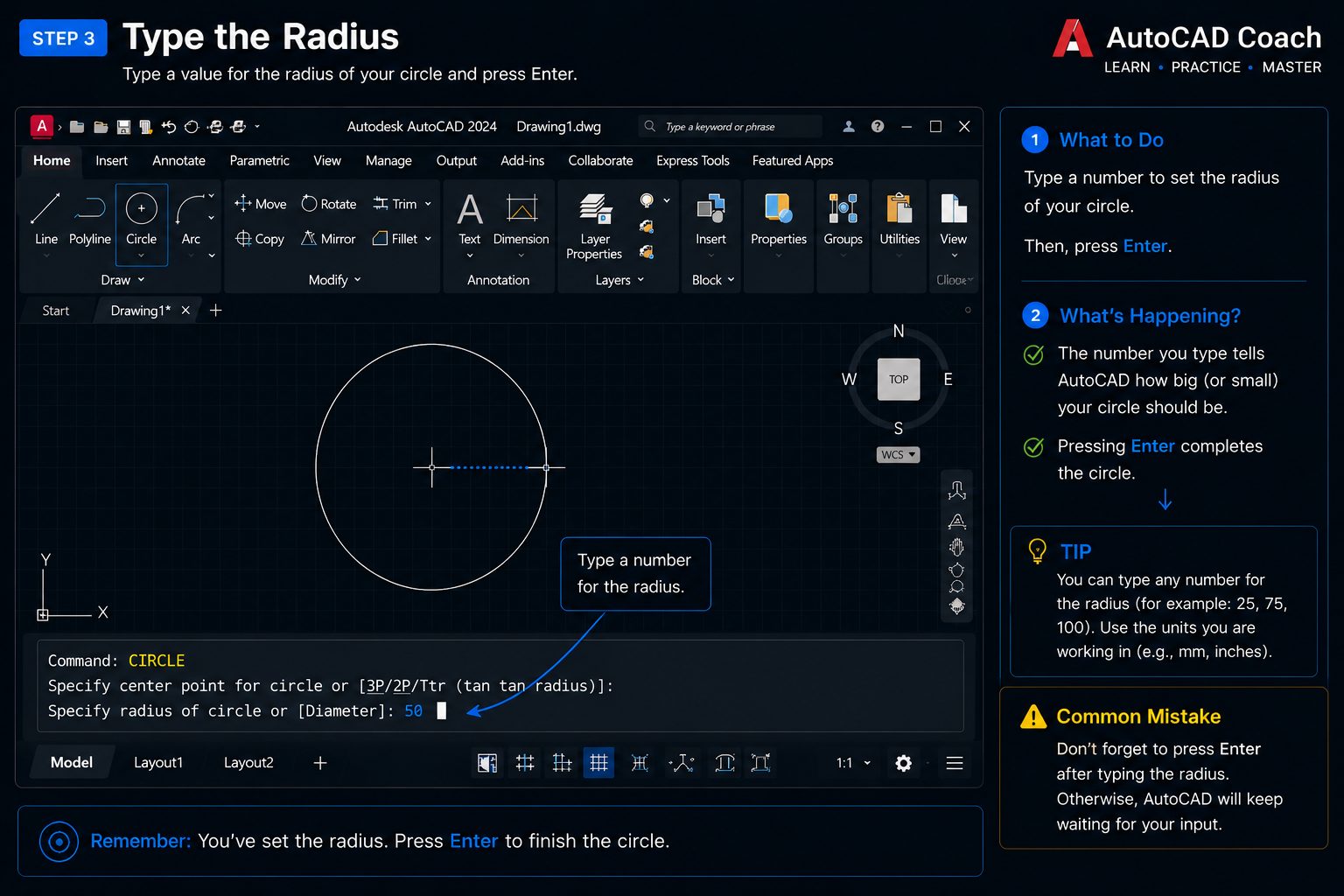

Type the radius
4

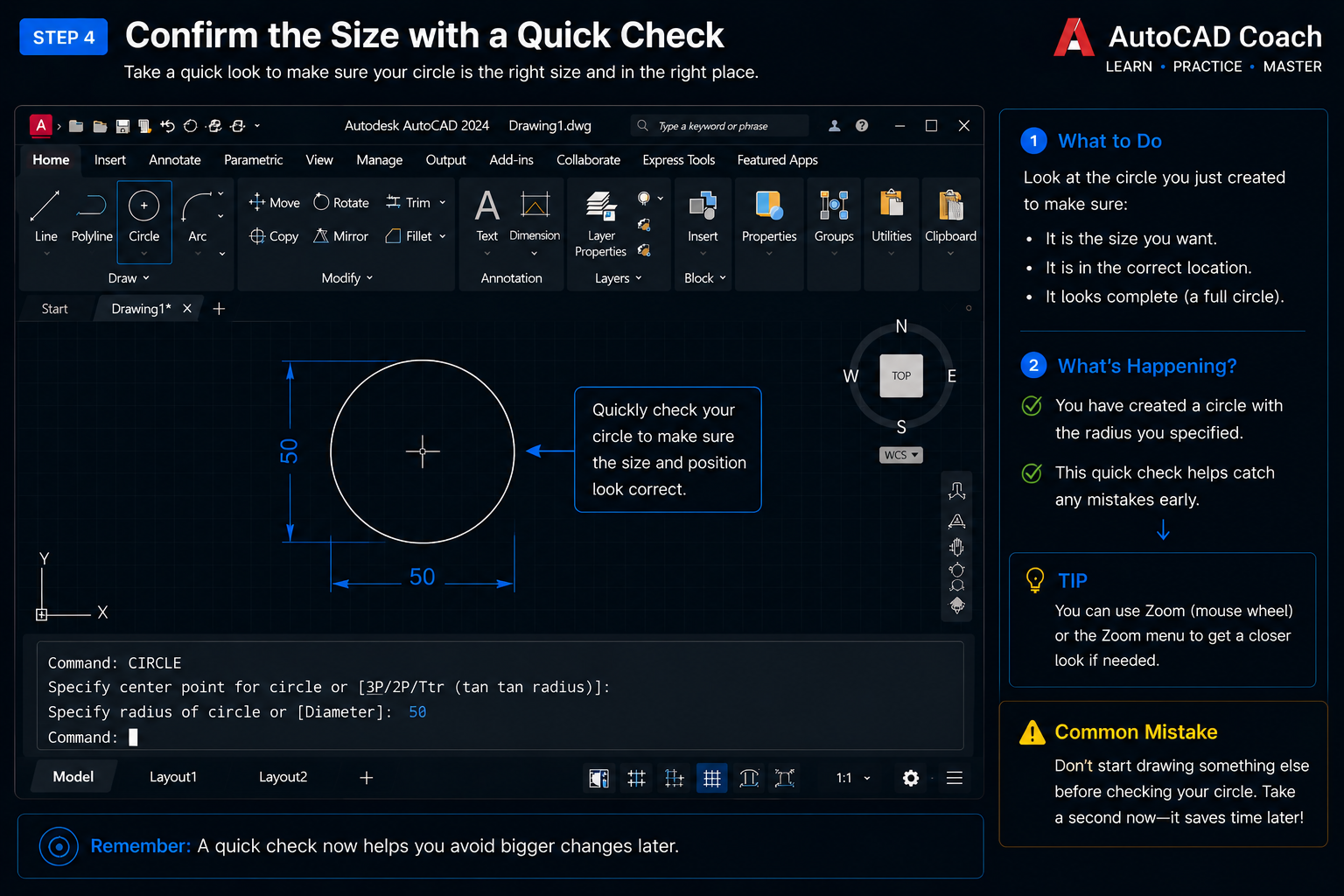

Confirm the size with a quick check

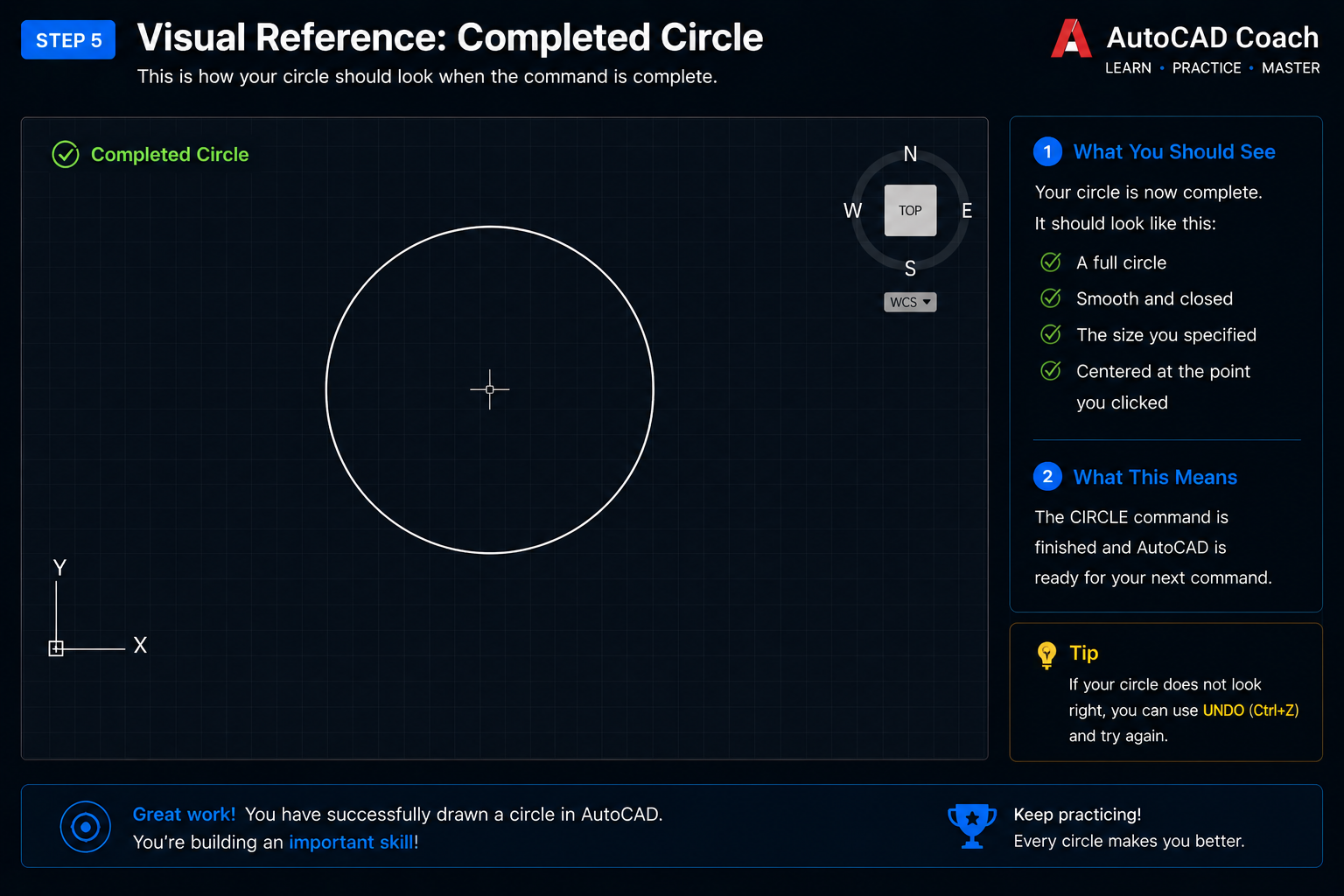

Visual reference

Common mistakes & fixes

Typing the diameter when AutoCAD is asking for the radius.
Fix: Either halve your value or, at the radius prompt, type D first, press Enter, then type the diameter.
Picking a centre point with OSNAP off and getting a slightly misaligned circle.
Fix: Press F3 to enable OSNAP, then snap to an existing endpoint, midpoint or intersection.
Clicking instead of typing the radius and getting a random size.
Fix: Always type a numeric radius — never trust the eyeball for engineering geometry.

Troubleshooting

The circle is huge or microscopic.Show

Cause: Your drawing zoom level made the typed radius look unexpected.

Fix: Run ZOOM EXTENTS (Z → E) to refit the view.

AutoCAD asks for a diameter, not a radius.Show

Cause: The last CIRCLE invocation switched the default to Diameter.

Fix: At the prompt type R and press Enter to switch back to radius.

Pressing Enter draws another circle.Show

Cause: Enter on a clean prompt repeats the last command.

Fix: Press Esc to clear, then start the next command deliberately.

Practice exercise

Concentric circles

Draw a circle of radius 50 at any point.
Run CIRCLE again. At the centre prompt, snap to the centre of the first circle (OSNAP → Center).
Type radius 30 and press Enter.
Repeat for radius 10.

Success looks like: You see three perfectly concentric circles (10, 30, 50). LIST any one to confirm its radius.

Pro tips & related commands

Pro tips

At the radius prompt, type D and Enter to switch into Diameter mode for that one circle.
Inside CIRCLE, type 2P to draw a circle through two points (the two clicks become a diameter).
Use the Ttr option to draw a circle tangent to two existing objects with a given radius.

Related commands

ARC(A)
Draw a portion of a circle.
ELLIPSE(EL)
Draw an oval defined by two axes.
DONUT(DO)
Draw a filled ring (two concentric circles).

Lesson quiz

0/3 correct

Score at least 3/3 to unlock lesson completion.

1. After CIRCLE, what does AutoCAD ask for first?

2. At the radius prompt, how do you switch to typing a diameter instead?

3. Which option draws a circle through two clicks that form a diameter?
